하이스 2단 이젝터 핀

하이스 2단 이젝터 핀

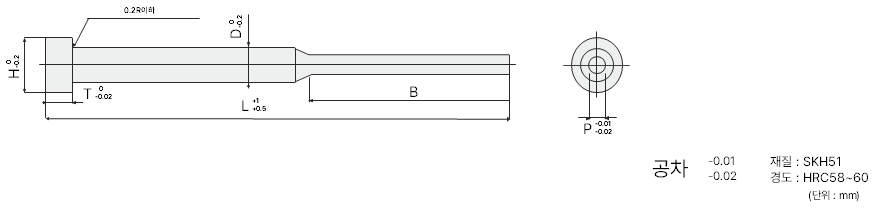

외형도

표준규격

P D H T L
60 100 150 200 250 300
B35 B50 B100 B80 B130 B100 B145 B145
0.7 1.5 5 3 2,870 3,190 5,280 4,800
0.8 2,610 2,900 4,840 4,400
1.0 2,380 2,640 4,050 3,680
0.7 2.0 6 4 3,480 3,870 4,800 4,960
0.8 3,160 3,510 5,100 4,640 5,370 4,880
1.0 2,870 3,190 3,870 3,520 4,220 3,840
1.2 2,610 2,900 3,610 3,280 3,960 3,600
1.5 2,380 2,640 3,340 3,040 3,780 3,440
0.8 2.5 3,450 3,830 5,460 4,960 5,900 5,360
1.0 3,130 3,480 4,220 3,840 4,580 4,160
1.2 2,850 3,170 3,870 3,520 4,220 3,840
1.5 2,590 2,880 3,610 3,280 3,960 3,600
1.0 3.0 3,130 3,480 4,190 3,810 4,630 4,210 5,280 7,920
1.2 2,850 3,170 3,810 3,470 4,210 3,830 5,040 7,600
1.5 2,590 2,880 3,470 3,150 3,830 3,480 4,800 7,200
1.0 4.0 8 6 4,590 5,100 6,000 5,450 6,770 6,150 8,400 12,640
1.2 4,170 4,630 5,450 4,950 6,150 5,590 8,080 12,160
1.5 3,790 4,210 4,950 4,500 5,590 5,080 7,760 11,600
2.0 3,450 3,830 4,500 4,090 5,080 4,620 7,360 11,040
2.5 3,130 3,480 4,090 3,720 4,620 4,200 6,960 10,480
3.0 2,820 3,130 3,680 3,350 4,200 3,780 6,640 9,920
